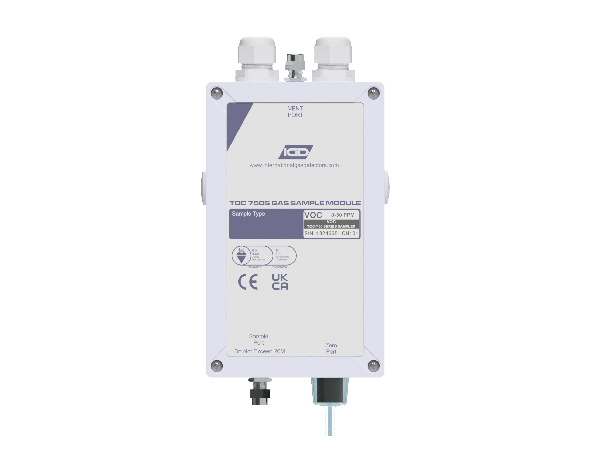

TOC-750S Sampling PID Detector
World Leading PID Sensor Technology from the Experts in VOC Detection.
The TOC-750S sampling PID detector is an addressable aspirated gas detector. Designed for areas that are difficult to access or harsh for normal diffusion sensors. These environments could include semiconductor manufacturing or cleanrooms. Our PID detector contains a non-electrode UV lamp, boasting a world leading lamp life more than 15,000 hours runtime. The IGD PID detector also significantly reduces the effects of sputtering, one of the main drawbacks of current PIDs and also extends the sensor life drastically. The 750S features IGD’s unique piezo pump technology, with virtually no moving parts reducing the sound and size of the device, as well as the maintenance.
Photoionisation (PID) Detector Ranges:
- VOCs – 0-50ppm
- VOCs – 0-100ppm
- VOCs – 0-200ppm
- VOCs – 0-2,000ppm
- VOCs – 0-5,000ppm

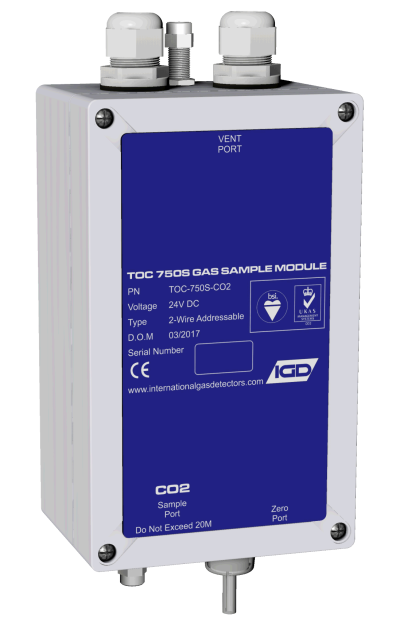

Aspirated (Sampling) Gas Detector
Most Stable and accurate PID Detector on the Market
The TOC-750S PID detector offers leading VOC detection on our Sentinel+ addressable communication system. This 2-Core cable highway connection allows for easy installations, as well as significantly reducing installation costs by around 70% and allowing up to 32 devices on one highway. We also offer a 10-year warranty* on this product, guaranteeing constant care even after the initial purchase and for a large duration of the PID detectors life.
Leading PID Sensor Technology
Our unique electrode stack design for our sensor ensures the common issue of humidity is eradicated, without reducing the performance of the PID detector. Our VOC sensor also contains a non-electrode UV lamp. This lamp possesses a world-leading life of 15,000 hours run time and noticeably curtails the effects of sputtering, another common issue in current PID detectors. Extending the accuracy, robustness and reducing the drift of the sensor.
Piezo Pump Technology
The TOC-750S PID detector also incorporates our piezo pump technology. This technology provides the samplers with virtually no moving parts, no valves nor pump seals. Thus, increasing its reliability and reducing upkeep costs and size of the device.
Stable & Accurate Sensor for Low-Level PPM Detection
The TOC-750s PID detector features our industry first auto zero; this samplers zero port is provided with active filtration and the system will automatically, periodically zero. This provides unparalleled zero stable for the sensor, allowing for low alarm and PPM levels for VOC detection, making it more applicable for a wider range of PID detector applications.
Talk to the Experts in PID Detector Technology
IGD also offer specialist advice from the oldest, independent gas detection company in the UK. IGD are experts in PID detectors, specialising solely in gas detection so you can be sure that you are getting detectably better safety from a specialist source. We offer free training on all our products. We are a CPD-accredited source and have a team covering the UK and Ireland, as well as offering online and in-person training. In addition, we have one of the largest distributor and partner networks in the industry. So, you can get the highest quality training on PID detectors, wherever you are, straight from the manufacturer.
- Sentinel + addressable 2-core wire technology
- Auto zero functions
- Non-electrode UV lamp – leading lamp life and reduced sputtering effects
- Lower PPM level of VOC
- 10-Year warranty*
- Unique electrode stack design
- Long list of cross-calibration data
- Up to 20m sample line
- Low maintenance
- Virtually no moving parts
- Near continuous detection
- 1L/min sample rate
- Excellent zero stability
- Constant flow monitoring
- Fast response time
*Terms and conditions apply
- Power: 24V DC
- Weight: 0.85Kg
- Dimensions: (w×d×h) See Diagram
- Temperature Range: -5° to 55°C (23° to 131°F)
- Ingress Protection: IP54
- Humidity 20% to 90% RH Non-Condensing
- Mounting: Wall Mount
- Housing Material: ABS
- Sensors: Semi-Conductor, Pellistor, Toxic, PID, Oxygen, Infrared
- Communication: IGD Sentinel+™ Protocol, 2-Wire Connection
For the full list of specifications, check out the data sheet.
Some of the more typical applications for our TOC-750S aspirated PID Detector include but not limited to:
- Cleanrooms
- Laboratories
- Semiconductor manufacturing
- IVF and Cell Therapy treatment
- Chemical storage
- Medical
- Pharmaceutical
- Virology labs
Please see below accessories (sold separately)
- Through Wall, clean room sample points
- Range of end-of-line sample points and filters
- Gas collector cones and hoods
- Fitting kits with 20m tube coils
- PTFE Tube options
